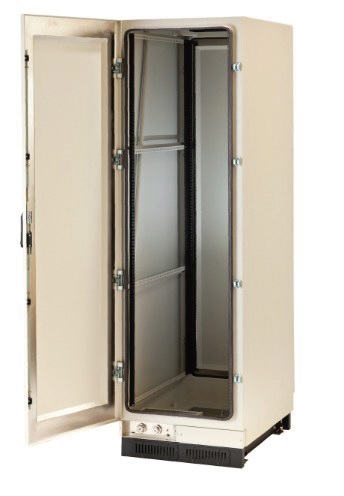

19”EMI Shielding Cabinet
APPLICATIONS
The Caledonian EMC shielding cabinet are made from the same proven modular R.F. shielding materials as our
full size Modular R.F. Shielded Enclosuresystems and offer the same exceptional R.F. Shielding Effectiveness
FEATURES
All the doors are fitted with Shielding Gaskets incorporating water and dustsealing capability.A filter housing in
the base of the cabinet accommodates the AC mains RF fi lters, with access through an internal removable
cover. A safety cover protects the mains terminal on the cabinet exterior. Venting is provided through fully
gasketted honeycomb RF fi lters and additional airfl ow can be achieved by the addition of a fan unit, however
the cabinet will no longer meet the IP55 dust and moisture standard.
ITEM 1: 700x600x2100mm EMI Shielded Cabinet (rack for RF-units 19" mounting)
Each unit comes with the following items and features;
1unit Main frame structure
Material in Cold Rolled Steel
4pcs IEC279 Standard 19" mounting angle with
RU label at the front;
1pc base stiffener;
1pc Front door c/w multi point lock set, louvers and concealed heavy duty hinges;
1pc Rear door c/w multi point lock set and concealed heavy duty hinges;
1pc Side panel (secured from inside);
1set RFI sealing tape for doors and other
openings;
2sets, RFI gaskets self-secured type mounted on the frame doors opening to interface with the doors to provide
an effective RF shielding when the doors are in closed position;
4nos, EMI/RFI honeycomb panels. Each panel good for 2 fans;
1no top/bottom cable entry panel with custom cut out;
4nos, threaded and full weld M16 eyebolt assembly;
4nos, Eyebolts on four top corners;
50 sets of cagenut assembly;
Earth wire kits to connect cabinet frames and doors
1set, fan assembly unit;
Material pre-treatment of degreasing, de-rusting and phosphating prior to
powder-coating
Powder-coated to RAL 7035, light grey in textured fi nishing.
EMI fi lters to be mounted on roof of the cabinet:
1pc, 48V DC(100A)
1pc, 230V AC/16A (this is optional for BTS cabinet)
Up to 8pcs RJ45 ethernet
Several through holes for RF N or 7/16 fi xed connectors.
ITEM 2: 600mmx600mmx2100mm EMI Shielded Cabinet (Rack for RF-terminals 19"
mounting)
Each unit comes with the following items and features;
1unit, Main frame structure;
Material in Cold Rolled Steel
4pcs, IEC279 Standard 19" mounting angle with RU label at the front;
1pc, base stiffener;
1pc, Front door c/w multi point lock set, louvers and concealed heavy duty hinges;
1pc, Rear door c/w multi point lock set and concealed heavy duty hinges;
1pc, Side panel (secured from inside);
1set, RFI sealing tape for doors and other openings;
2sets, RFI gaskets self-secured type mounted on the frame doors opening to interface with the doors to provide an effective RF shielding when the doors are in
closed position;
4nos, EMI/RFI honeycomb panels. Each panel good for 2fans;
1no, top/bottom cable entry panel with custom cut out;
4nos, threaded and full weld M16 eyebolt assembly;
4nos, Eyebolts on four top corners;
50 sets of cagenut assembly;
Earth wire kits to connect cabinet frames and doors c/w fan assembly unit;
Material pre-treatment of degreasing, de-rusting and phosphating prior to powder-coating
Powder-cοated to RAL 7035 light grey in textured fi nishing.
EMI fi lters to be required as follows:
1 or 2pcs, 230V AC/16A
120pcs, UBS 2
1-5 through holes for RF N or 7/16 fi xed connectors.
